2A16 Aluminum Rod Bar
2A16 aluminum rod bar is a heat-treatable Al-Cu-Mn aluminum alloy renowned for its exceptional high-temperature strength and creep resistance. While possessing moderate strength at room temperature, it exhibits excellent mechanical stability and load-bearing capacity at ambient temperatures ranging from 250°C to 350°C. This alloy is characterized by excellent ductility under hot working conditions, good weldability, and the ability to be strengthened through heat treatment. It is a crucial material for applications requiring components to withstand sustained thermal stress without significant deformation.
| Advantage | Description |
| Exceptional High-Temperature Strength | 2A16 maintains its mechanical properties much better than standard aluminum alloys at temperatures up to 350°C, making it ideal for thermal applications. |
| Good Weldability | The alloy exhibits good spot welding, seam welding, and argon arc welding performance with a low tendency for cracking, allowing for the fabrication of complex welded structures. |
| Excellent Hot Workability | In the hot state, 2A16 has high plasticity and no significant extrusion effect, making it suitable for forging and hot forming processes. |
| Heat-Treatable | Can be strengthened through solution heat treatment and artificial aging (T6 temper) to achieve high strength levels. |
We can also provide Material Testing Certificates (MTC) and third-party inspection reports upon request to ensure quality assurance and traceability for your critical applications. We offer a variety of thicknesses and widths to meet diverse application needs, and provide standard and custom sizes to meet specific design requirements.
Specification
| Alloy | 2A16 Aluminum |
| Temper | T3, T4, T6 |
| Shapes | Flat, round, square, hexagonal |
| Equivalent Name | UNS A92160 Aluminum Alloy 2016 AA2016 AlCu4MgSi 2A16 |
| Round Bar Diameter Range | 5-100mm (cold drawn bars); φ5-600mm (extruded bars); φ100-650mm (forged bars) |
| Length | 1000mm-6000mm or customized |
| Surface Treatment | Mill finish, anodizing, bright, black, polishing, etc. |
| Package | Wooden pallets, waterproof paper, or according to customer requirements |
| Processing Services | Surface treatment, bending, drilling, welding |
2A16 Aluminum Alloy Bar Mechanical and Physical Properties
| Mechanical Properties (T6 Temper) | Details | GB/T 3191 / Typical |
| Tensile Strength (Rm) | ≥ 355 MPa | High strength after heat treatment |
| Yield Strength (Rp0.2) | ≥ 235 MPa | Good load-bearing capacity |
| Elongation (A) | ≥ 8% | Moderate ductility |
| High-Temperature Performance | Key Advantage | |
| Creep Strength (250°C) | ≥ 85 MPa | Excellent resistance to deformation under high heat |
| Physical Properties | ||
| Density | 2.79 g/cm³ | Lightweight material |
| Melting Range | ~ 510 – 640 °C | Standard for 2xxx series alloys |
2A16 Aluminium Alloy Bar Chemical Composition
| Chemical Composition | Al | Cu | Si | Mn | Mg | Fe |
| Composition(%) | 90.0-95.0 | 4.0 – 5.0 | 0.5 – 1.0 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 |
HSTF 2A16 Aluminum Rod Bar Product
2A16 Precision Aluminum Bar
Temper: T6 T651 O
The 2A16 precision aluminum bar offers extremely high dimensional accuracy and surface finish, ensuring stability and reliability under high-load conditions through precision machining.
2A16 Hot Extruded Aluminum Bar
Temper: T4 T6 O
The hot extrusion process of the 2A16 aluminum bar improves the internal grain structure of the metal, ensuring consistent and stable mechanical properties. Additionally, hot extrusion enhances the formability of the aluminum bar, facilitating subsequent machining.
2A16 Cold Drawn Aluminum Bar
Temper: T4 T6 O
The cold drawing process makes the 2A16 aluminum bar well-suited for high-load applications. Furthermore, cold drawn bars typically exhibit excellent dimensional accuracy and surface finish, reducing the need for further processing.

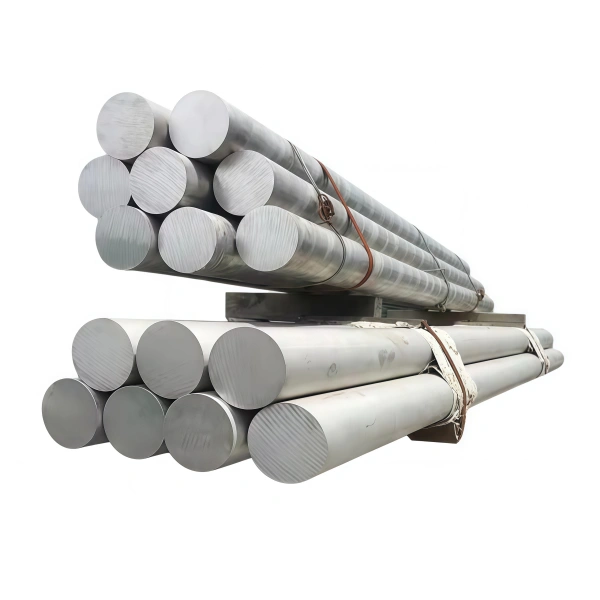

2A16 Aluminum Round Bar
2A16 Aluminum Square Bar
Rectangular/Flat 2A16 Bar
2A16 Aluminum Hex Bar
HSTF 2A16 Aluminum Bar Best-Selling Size
| Diameter (inch) | Diameter (Metric) | Weight (KG/Metre) | Availability |
| 3/8″ | (9.53mm) | 0.202 | Available |
| 1./2″ | (12.7 mm) | 0.355 | Available |
| 5/8″ | (15.88 mm) | 0.561 | Available |
| 3/4″ | (19.05 mm) | 0.807 | Available |
| 7/8 “ | (22.23 mm) | 1.097 | Available |
| 1″ | (25.4 mm) | 1.419 | Available |
| 1.1/8 “ | (28.58 mm) | 1.816 | Available |
| 1.1/4″ | (31.75 mm) | 2.241 | Available |
| 1.3/8″ | (34.93 mm) | 2.690 | Available |
| 1.1/2″ | (38.1 mm) | 3.226 | Available |
| 1.5/8″ | (41.28 mm) | 3.747 | Available |
| 1.3/4 “ | (44.45 mm) | 4.360 | Available |
| 2″ | (50.8 mm) | 5.675 | Available |
| 2.1/4″ | (57.15 mm) | 7.190 | Available |
| 2.1/2″ | (63.5 mm) | 8.867 | Available |
| 2.3/4″ | (69.85 mm) | 10.730 | Available |
| 3″ | (76.2 mm) | 12.769 | Available |
| 3.1/4 “ | (82.5 mm) | 14.986 | Available |
| 3.1/2″ | (88.9 mm) | 17.380 | Available |
| 3.3/4″ | (95.25 mm) | 20.165 | Available |
| 4″ | (101.6 mm) | 22.700 | Available |
| 4.1/4″ | (107.95 mm) | 25.627 | Available |
| 4.1/2″ | (114.3 mm) | 28.730 | Available |
| 5″ | (127 mm) | 35.469 | Available |
| 7″ | (177.8 mm) | 69.650 | Available |
| 10″ | (254 mm) | 140.065 | Available |
HSTF Other Best-Selling Products
Application
2A16 Aluminium Bar for Aerospace
2A16 aluminum alloy is used to manufacture aircraft fuselage structures, wing frames, brackets, and other critical components. This material maintains good performance under extreme conditions, ensuring flight safety and efficiency.
Aluminum Bar for Automotive Industry
2A16 aluminum bars are utilized in the body structures, suspension systems, and engine components of high-performance vehicles. Its high strength and low weight contribute to improved fuel efficiency and handling performance, while reducing the overall vehicle weight to meet modern demands for energy savings and performance.
2A11 Aluminium Bar for Mechanical Engineering
Manufacturers widely use 2A16 aluminum bars to produce various machinery and tools. Especially in applications that demand high strength and wear resistance. They make shafts, gears, frames, and other components capable of withstanding heavy loads.
2A16 Aluminum Bar for Building Structures
2A16 aluminum alloy is used to manufacture load-bearing structures and exterior decorative materials, enhancing the safety and aesthetics of buildings due to its lightweight and strength characteristics.
Package
| Packing | 1,Generaally package:Anti-water paper+strapped with min three strapping strips. |
| 2,Standard exporting package:Anti-water paper and plastic+covered by iron shrrt+strapped with min three strapping strips. | |
| 3,Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strip+fixed on the iron or wooden pallets by strapping strips. | |
| Shipping | 1,Shipping by containers |
| 2,Shipping by bulk ship | |
| Custom | Customization is available upon request |
Why Choose Us?
Quality Assurance – All products comply with ASTM, ISO and other international standards, ensuring high purity, uniformstructure, and stable performance.
Professional Supplier – Professional 2A16 aluminum rod bar supplier in China. We have an advanced factory to ensure quality and efficiency.
Competitive Price – The mature supply chain system, advanced equipment and technology ensure that our products are highly competitive in cost and price.
Superior Quality – Quality supervision on whole process of production from raw materials, manufacturing, packaging, warehousing till container loading.
On-Time Delivery – The mature logistics management system and company self owned freight forwarder ensure that our OTD rate reaches 100%.
