2A11 Aluminum Rod Bar
2A11 aluminum rod bar, also known as “standard hard aluminum alloy” (formerly LY11), is a high-strength, heat-treatable aluminum-copper-magnesium alloy. It is one of the earliest and most widely used hard aluminum alloys, favored for its excellent balance between strength, formability, and machinability. This alloy possesses excellent mechanical properties, making it suitable for load-bearing applications. It is particularly renowned for its good spot welding performance and acceptable gas welding characteristics. 2A11 is a versatile material suitable for various industrial and aerospace components.
| Advantage | Description |
| High Strength-to-Weight Ratio | 2A11 offers significantly higher strength than 1000 and 3000 series alloys, making it ideal for weight-sensitive applications. |
| Good Machinability | In the T4 or T6 temper, 2A11 has good machinability, allowing for high-speed cutting and production of complex parts with good surface finish. |
| Heat-Treatable | The alloy can be heat-treated to achieve a range of strength levels, from the tough T4 temper to the high-strength T6 temper, providing flexibility for different design requirements. |
| Weldability | 2A11 has good spot welding characteristics and can be gas welded, though it may be prone to cracking in certain high-heat welding processes. |
Our 2A11 aluminum alloy bar rod conform to international standards such as ASTM B221, GB/T 3191-2010, GB/T 3190-2020. We can also provide Material Testing Certificates (MTC) and third-party inspection reports upon request to ensure quality assurance and traceability for your critical applications. We offer a variety of thicknesses and widths to meet diverse application needs, and provide standard and custom sizes to meet specific design requirements.
Specification
| Alloy | 2A11 Aluminum |
| Temper | T1 T4 |
| Shape | Round bar, square bar, hex bar |
| Diameter Range | 5-600mm |
| Length | 1000mm-6000mm or customized |
| Surface Treatment | Polished, brushed, sandblasted |
| Package | Wooden pallets, waterproof paper, or according to customer requirements |
2A11 Aluminum Alloy Bar Mechanical and Physical Properties
| Mechanical Properties (T4 Temper) | Details | GB/T 3191-2010 (Typical) |
| Tensile Strength (Rm) | ≥ 370 MPa (≥ 425 MPa for T4) | High strength for structural use |
| Yield Strength (Rp0.2) | ≥ 215 MPa (≥ 275 MPa for T4) | Good load-bearing capacity |
| Elongation (A) | ≥ 12% | Good ductility and formability |
| Hardness (HB) | ~ 100 – 120 | Suitable for machining and wear resistance |
| Physical Properties | ||
| Density | 2.80 g/cm³ | Lightweight material |
| Melting Range | ~ 510 – 640 °C | Standard for 2xxx series alloys |
| Electrical Conductivity | ~ 30% IACS | Moderate electrical performance |
2A11 Aluminium Alloy Bar Chemical Composition
| Elements | Composition |
| Si | 0 – 0.7% |
| Cu | 3.8% – 4.8% |
| Mg | 0.4% – 0.8% |
| Zn | 0 – 0.3% |
| Mn | 0.4% – 0.8% |
| Ti | 0 – 0.15% |
| Ni | 0 – 0.10% |
| Fe | 0 – 0.7% |
| Fe + Ni | 0 – 0.7% |
| Al | Remainder |
| Other(each) | 0 – 0.05% |
| Other(total) | 0 – 0.10% |
HSTF 2A11 Aluminum Rod Bar Product

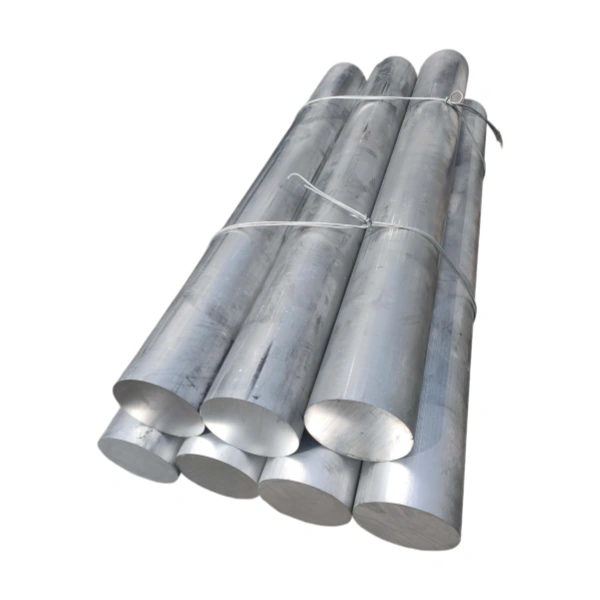

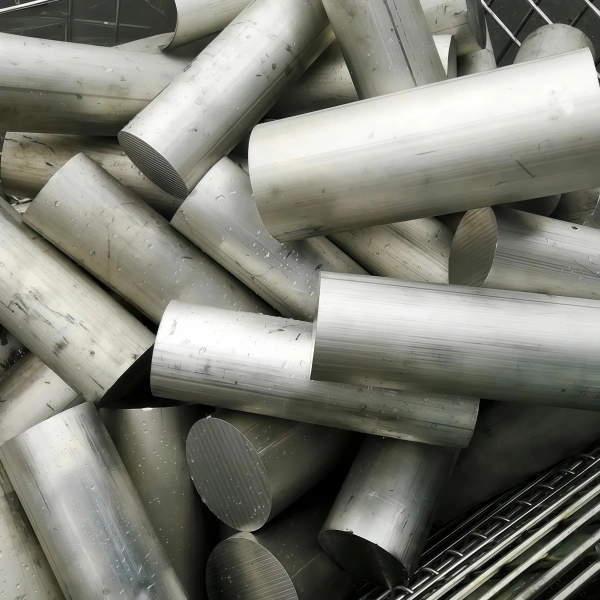

2A11 Extruded Aluminum Round Bar
OD: 5-600mm
Applications: aircraft structural parts, wing beams, engines, vehicle chassis.
2A11 Aluminum Square Bar
Features: square cross-section, can more stably bear and distribute loads.
Diameter: 5*5mm-200*200mm
Applications: supporting structures for aircraft, building structural components
2A11 Aluminum Hex Bar
Features: hexagonal cross-section is easier to grip and apply force.
Side length: 5-200mm
Applications: nuts, bolts, and other components for aircraft.
2A11 Cold Drawn Aluminum Bar
2A11 aluminum cold drawn rod bar has higher strength, hardness, and surface finish.
Applications: high-strength mechanical parts, precision instruments, and load-bearing structures
HSTF Other Best-Selling Products
Application
2A11 Aluminium Bar for Aerospace
- Aircraft Structures: Wing spars, fuselage frames, bulkheads, and stringers.
- High-Load Parts: Structural components that require high strength-to-weight ratio.
- Rivets & Fasteners: High-strength rivets and custom fasteners.
Aluminum Bar for Automotive & Transportation
- Engine Components: Pistons, cylinder heads, and connecting rods (for certain applications).
- Suspension & Chassis: High-stress components and structural brackets.
- Wheels & Hubs: Forged and machined wheel components.
2A11 Aluminium Bar for Machinery
- Gears & Shafts: High-strength transmission components.
- Hydraulic & Pneumatic Parts: Cylinder bodies and valve blocks.
- Jigs & Fixtures: Durable tooling and manufacturing fixtures.
Package
| Packing | 1,Generaally package:Anti-water paper+strapped with min three strapping strips. |
| 2,Standard exporting package:Anti-water paper and plastic+covered by iron shrrt+strapped with min three strapping strips. | |
| 3,Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strip+fixed on the iron or wooden pallets by strapping strips. | |
| Shipping | 1,Shipping by containers |
| 2,Shipping by bulk ship | |
| Custom | Customization is available upon request |
Why Choose Us?
Custom services: provide customized 2A11 aluminum bars in different sizes and shapes, including round bars, square bars, and hex bars, according to customer requirements.
Fast delivery: ensure quick order fulfillment from order placement to production completion.
Free samples: offer free sample services to allow customers to test and evaluate product quality before bulk purchasing.
Technical support: provide professional technical consultation and support, including material selection, processing advice, and usage guidance, to help customers make the best use of 2A11 aluminum bars.
Quality assurance: a strict quality control system ensures that all 2A11 aluminum bar products meet relevant international standards and provide quality inspection reports to guarantee product reliability and consistency.
After-sales service: offer comprehensive after-sales service, including technical support and problem resolution, to ensure customers have no concerns during usage.
