Aluminum alloy is a key structural material in the photovoltaic industry, mainly used in solar photovoltaic frames and brackets. Its characteristics include lightweight, high strength, corrosion resistance, ease of processing, and full recyclability, perfectly matching the requirements of photovoltaic systems for long-term durability, lightweight design, and environmental friendliness. It is currently the preferred material for photovoltaic module encapsulation and support systems.
HSTF provides the solar industry with high-quality aluminum products for key components such as photovoltaic module frames. In addition, we offer complete integrated installation systems and structural solutions, including roof and ground mounting brackets, streetlights, solar carports, agricultural greenhouses, and foundation piles, to ensure the efficient and stable operation of solar projects.
| HSTF Aluminum Products Specification for Photovoltaic Brackets | |
| Alloy | 6061, 6063, 6082, 6060 6005, 6463 |
| Product Type | Aluminum profile, aluminum flat bar, etc. |
| Deep Processing | Drilling, bending, welding, precision cutting, punching, etc. |
| Surface Treatment | Grinding, powder coating, anodizing, sandblasting, polishing, etc. |
| Standard | GB 5237-2008, JISH, AAMA, GB, BS, En, CE, DNV, ISO9001 |
| HSTF Aluminum Profile Properties | |||||
| Alloy | Temper | Wall Thickness | Tensile Strength Rm(MPa) | Yield Strength RP0.2(MPa) | Elongation % |
| 6005 | T5 | ≤5.00 | ≥260 | ≥240 | ≥8 |
| 6060 | T5 | ≤5.00 | ≥160 | ≥120 | ≥6 |
| T6 | ≤3.00 | ≥190 | ≥150 | ≥6 | |
| T66 | ≤3.00 | ≥215 | ≥160 | ≥8 | |
| 6061 | T6 | ≤5.00 | ≥265 | ≥245 | ≥8 |
| 6063 | T5 | ≤5.00 | ≥160 | ≥110 | ≥8 |
| T6 | ≤3.00 | ≥205 | ≥180 | ≥8 | |
| T66 | ≤3.00 | ≥245 | ≥200 | ≥6 | |
| 6463 | T5 | ≤5.00 | ≥150 | ≥110 | ≥6 |
| T6 | ≤5.00 | ≥195 | ≥160 | ≥8 | |
Aluminum Profiles for Photovoltaic Brackets
HSTF offers high-quality aluminum profiles specifically designed for solar photovoltaic module frames, primarily using alloys such as 6061, 6063, and 6082. Our aluminum profiles are high-strength, corrosion-resistant, and easy to process, ensuring secure mounting of solar modules and stability under various environmental conditions.
We offer a variety of surface treatments, including anodizing and powder coating, to meet diverse customer needs. We also provide custom cutting, drilling, and machining services based on specific customer requirements.

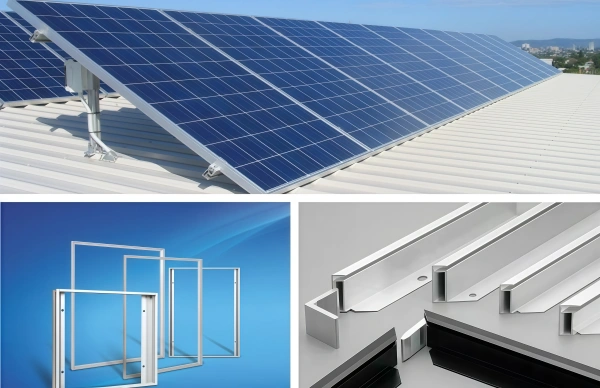

Aluminum Profiles for Photovoltaic Panel Frame

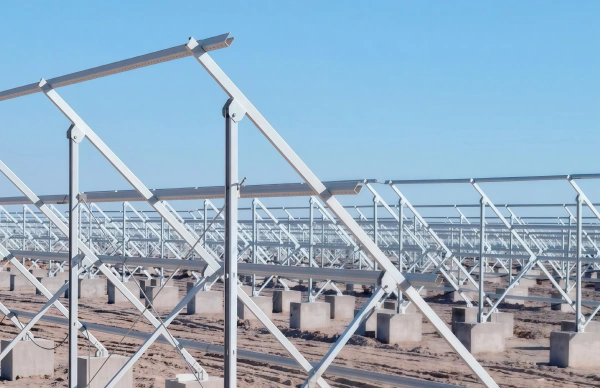

Aluminum Profiles for Photovoltaic Brackets

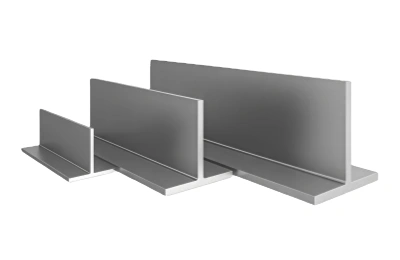

Aluminum T Profile

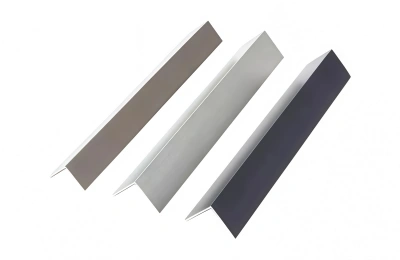

Aluminum L Profile
AluminiumT Profile

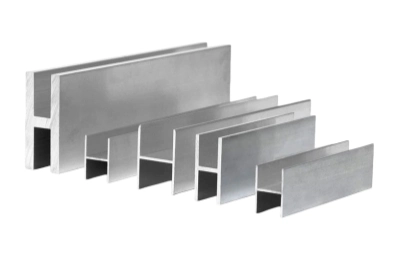

Aluminum H Profile
Aluminum Z Profile
Aluminium T-lot
Please contact our team to discuss customized aluminum profile solutions to ensure durable and reliable photovoltaic panel frames for your photovoltaic projects.
HSTF Photovoltaic Project Integrated Aluminum Mounting System
HSTF provides professional solutions for photovoltaic mounting projects, covering a wide range of sizes and applications to meet the diverse needs of solar modules. Whether for small applications like streetlights or large structures like carports, we offer custom-designed aluminum profiles to ensure stable and efficient installation and operation of solar systems.
| Photovoltaic Module Size Reference Table | ||
| Profile Cross-Section | Suitable Solar Component Size | Applicable Solar Type |
| 15*15, 17*17, 18*18, 20*20, 23*17, 25*25, 25*20, 30*25, 28*25 | Suitable for solar street lights and other small solar power devices | |
| 30*25, 35*30mm | 1200*540 mm | Suitable for 30-100W solar components |
| 35*35mm | 1580*808 mm | Suitable for 80-180W solar components |
| 40*35mm | 1580*808mm, 1640*990mm | Suitable for 120-200W solar components |
| 45*35mm | 1580*808mm, 1650*992mm | Suitable for 180-250W solar components |
| 50*35mm | 1650*992mm, 1960*992mm | Suitable for 200-300W solar components |

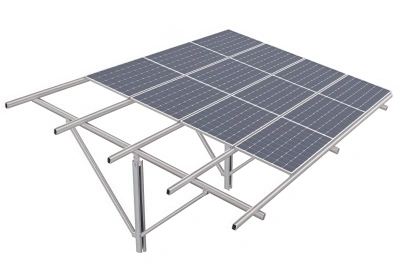

Single-Post Aluminum Mounting Solution
The single-leg structure makes it easy to install on sloping and uneven ground; the integrated pile and column facilitates construction and shortens the construction period. It reduces production costs and is suitable for large-scale projects.

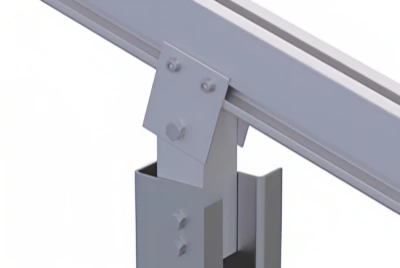

Stand Column

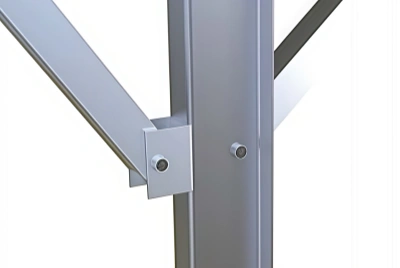

Sidestay
Underpinning

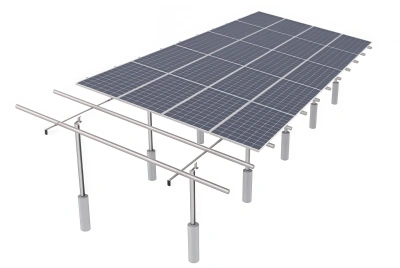

Aluminum Structures & Connectors for Pile Foundation Mounts
The structure without inclined supports enhances installation capability on sloped and uneven ground. Good construction performance can shorten the project timeline and reduce costs. Able to control land construction costs.

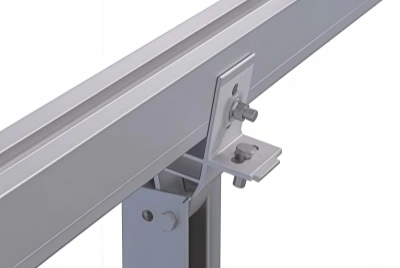

Connector

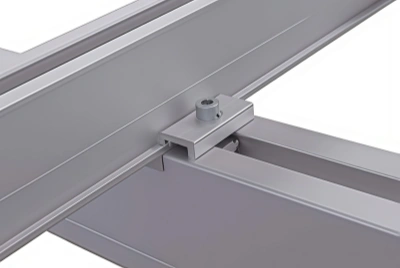

Rail clamps

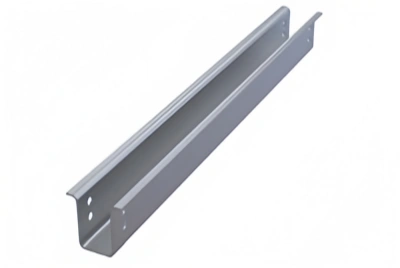

Underpinning

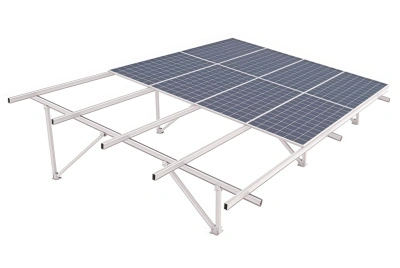

Base Clip Frame Solutions with Aluminum Profiles for PV Panels
Snow-resistant, suitable for snowy areas. The panel is secured with four metal plates to withstand strong winds. In elevated locations, installing the panel from below is easier and safer.

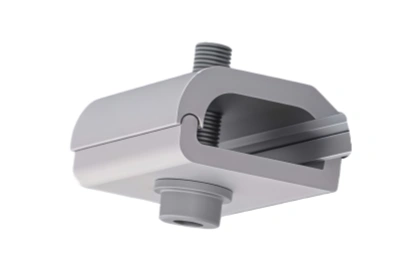

Clamps
Rails

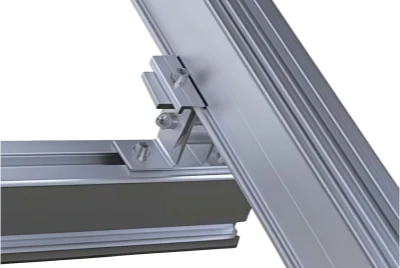

Angle Adjustment Connector

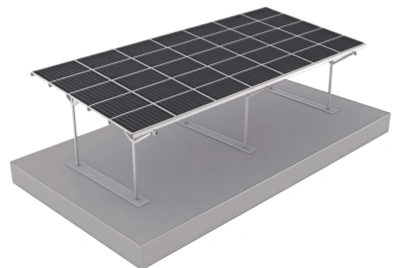

Aluminum Roof Structure for Solar Carport Installation
Raise the tilted support to avoid interference with the car door. Low-cost installation, suitable for areas with low wind and low snow.

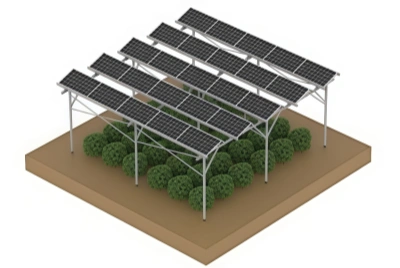

Aluminum Frame System for Solar Agricultural Greenhouses
Unlimited number of layers, infinitely configurable. Ensures ample working space for personnel and agricultural machinery. Adjust the shading rate by changing the panel spacing.
Support Structure for Solar Street Light Poles
The solar streetlights integrate photovoltaic panels, LED lights, and a control unit mounted on a single aluminum pole. Chalco provides lightweight, corrosion-resistant aluminum components, offering a durable and easy-to-install solution.
About Us – High Quality Aluminium Supplier
HSTF is a leading manufacturer and supplier of aluminum alloys for transportation industry in China. We specialize in the production, processing, and trading of aluminum alloy. With over 18 years of experience in the aluminum industry, we can provide a full range of high-quality aluminum at competitive prices.
- All extruded components can be cut, drilled, or machined to customer specifications. We can provide precise machining and cost-effective parts in short lead times.
- Since the panel frames are exposed to the natural environment, high corrosion resistance is required. We offer anodized aluminum profiles to further enhance the corrosion resistance of the solar aluminum alloy frames.
- HSTF will provide rigorous product quality inspection and precise product film application, packaging, and shipping. Ensuring product quality at every stage of production and delivery.
