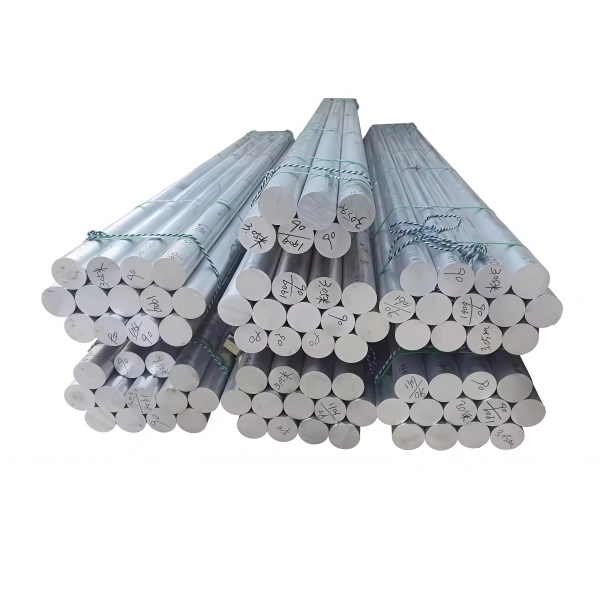

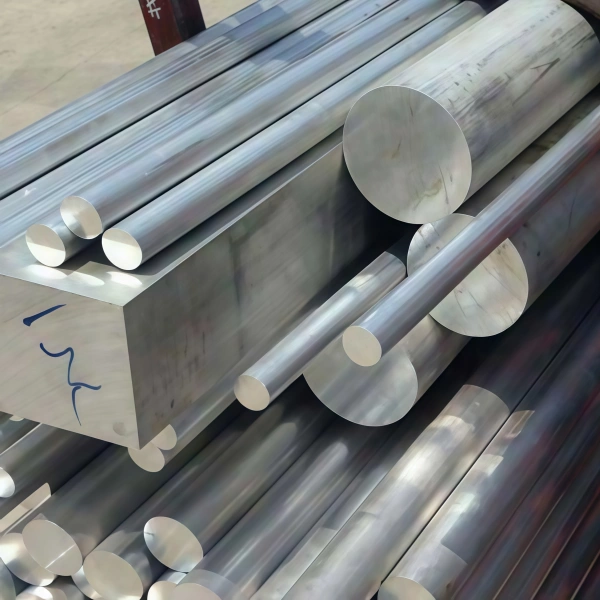

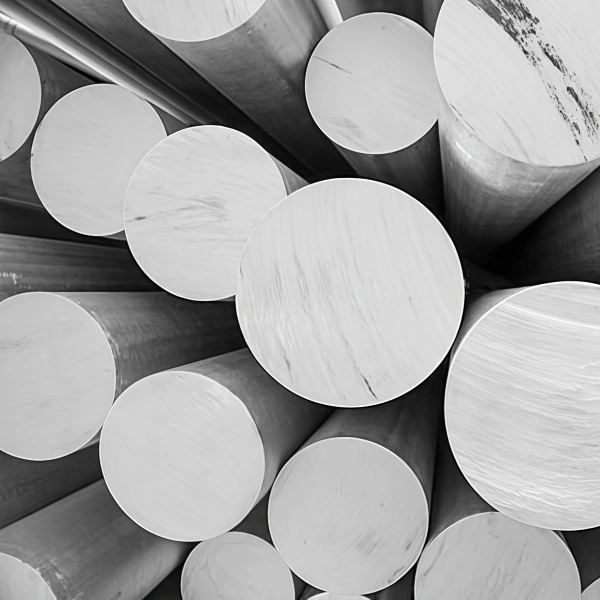

6062 Aluminum Rod Bar
6062 aluminum rod bar is a general-purpose aluminum alloy material with excellent mechanical properties, outstanding corrosion resistance, and excellent machinability. This alloy is characterized by high tensile strength and yield strength, making it ideal for structural components requiring durability under stress. It is widely used in many industries such as construction, automotive, aerospace, and electronics. It has good weldability and responds readily to surface treatments such as anodizing, combining functionality and aesthetics.
Advantage |
Description |
|
Good Mechanical Properties |
6062 aluminum alloy has high strength and is suitable for applications requiring high strength. |
|
Excellent Machinability |
The alloy is suitable for processing by a variety of methods, such as turning, milling, drilling, etc. |
|
Strong Corrosion Resistance |
Its good corrosion resistance makes it perform well in humid environments and open-air applications. |
|
Good Heat Treatment Performance |
6062 aluminum bars can be further improved in hardness and strength through heat treatment. |
|
Moderate Welding Performance |
Suitable for applications that require a certain welding strength, but the welding performance is slightly worse than 6061. |
Our 6062 aluminum alloy bar rod conform to international standards such as ASTM B221, EN 573-3, EN 755-2, AMS 4155. We can also provide Material Testing Certificates (MTC) and third-party inspection reports upon request to ensure quality assurance and traceability for your critical applications. We offer a variety of thicknesses and widths to meet diverse application needs, and provide standard and custom sizes to meet specific design requirements.
HSTF Aluminum is a high-quality aluminum bar rod supplier and manufacturer in China.We have large stock, factory direct price, quality assurance, fast delivery.
Specification
| Alloy Designation | 6062 (UNS A96062) |
| Temper Range | O, T4, T6, T651, T6511 |
| Standard Sizes | Round Bar: Ø 2.0 – 580 mm Length: 1,000 – 6,000 mm (cut-to-length available) |
| Tolerances | Diameter and straightness per ASTM B221 / EN 755-2. Custom tolerances are available upon request. |
| Surface Finish | Mill finish (as extruded or drawn), polished, or custom-finished. |
| Mechanical Properties | T6/T651 State (Typical):
(Values are for reference; actual data is provided in MTC) |
| Physical Properties | Density: ~2.70 g/cm³ Electrical Conductivity: ~43% IACS Thermal Conductivity: ~167 W/(m·K) |
| Typical Standards | ASTM B221, AMS 4150/4151, EN 755, GB/T 6892 |
6062 Aluminum Alloy Bar Chemical Composition
|
Element |
Content (%) |
|
Silicon (Si) |
0.40–0.80 |
| Iron (Fe) |
0.00–0.70 |
|
Copper (Cu) |
0.15–0.40 |
| Manganese (Mn) |
≤0.15 |
|
Magnesium (Mg) |
0.80–1.20 |
| Chromium (Cr) |
0.04–0.35 |
|
Zinc (Zn) |
≤0.25 |
| Titanium (Ti) |
≤0.15 |
|
Other single impurity |
≤0.05 |
| Total other impurities |
≤0.15 |
HSTF 6062 Aluminum Rod Bar Common Sizes
6062 aluminum bars are usually produced by extrusion process, and the common specifications and sizes are as follows:
| Alloy | Temper | Diameter(mm) | Diameter(inch) | Length(mm) |
| 6062 | T6 | 10 | 0.39 | 1000-6000 |
| 6062 | T6 | 12 | 0.47 | 1000-6000 |
| 6062 | T6 | 15 | 0.59 | 1000-6000 |
| 6062 | T6 | 20 | 0.79 | 1000-6000 |
| 6062 | T6 | 25 | 0.98 | 1000-6000 |
| 6062 | T6 | 30 | 1.18 | 1000-6000 |
| 6062 | T6 | 40 | 1.57 | 1000-6000 |
| 6062 | T6 | 50 | 1.97 | 1000-6000 |
| 6062 | T6 | 60 | 2.36 | 1000-6000 |
| 6062 | T6 | 75 | 2.95 | 1000-6000 |
| 6062 | T6 | 100 | 3.94 | 1000-6000 |
| 6062 | T6 | 120 | 4.72 | 1000-6000 |
| 6062 | T6 | 150 | 5.91 | 1000-6000 |
| 6062 | T6 | 180 | 7.09 | 1000-6000 |
| 6062 | T6 | 200 | 7.87 | 1000-6000 |
- The specifications in this table are common standard sizes, suitable for a variety of application requirements in different fields. If you have special size requirements, you can contact HSTF for customization.
Other Popular Products
HSTF 6062 Aluminum Rod Bar Quality Inspection
In order to ensure that the 6062 aluminum rods maintain high quality and safety during use, HSTF usually conducts strict quality inspections. Generally, quality inspections include the following aspects:
- Chemical composition inspection: The chemical composition of the 6062 aluminum alloy is inspected by a spectrometer to ensure that it meets international standards, such as ASTM or ISO standards, and that the element ratio meets the requirements.
- Mechanical property testing: The tensile strength, yield strength, elongation and other indicators of the 6062 aluminum rod are tested by tensile tests, hardness tests, etc. to ensure that the product has sufficient strength and toughness during use.
- Dimensional accuracy inspection: The key dimensions such as outer diameter and length are measured using precision measuring instruments to ensure that they meet the customer’s tolerance requirements, especially in applications that require precise matching.
- Surface quality inspection: Through a combination of visual inspection and equipment inspection, the surface of the 6062 aluminum rod is inspected for cracks, pits, scratches or other defects to ensure the integrity and uniformity of the product appearance.
- Ultrasonic testing: Used to detect whether there are defects such as pores, cracks or inclusions inside the 6062 aluminum rod. Ultrasonic testing can reveal internal problems that cannot be seen by the naked eye and ensure the structural integrity of the material.
- Corrosion resistance test: Simulate the actual use environment and test the corrosion resistance of the material through salt spray test or corrosion resistance test to ensure its stability in long-term use in humid and corrosive environment.
Application
6062 Aluminium Bar for Transportation
The transportation industry primarily uses 6062 aluminum bars to produce heavy-duty and high-stress structural components, such as truck frame longitudinal beams, heavy-duty trailer chassis, off-road vehicle suspension parts, bus frame reinforcement beams, rail vehicle bogie components, and high-performance ship deck beams.
6062 Aluminium Bar for Aerospace
Due to its high specific strength, good fracture toughness, and certain heat resistance, 6062 aluminum rods are also used in aerospace and military structural components. Typical components include aircraft cargo hold floor beams, armored support structures for military vehicles, missile launcher components, radar antenna supports, and load-bearing frames for UAV fuselages.
6062 Aluminium Bar for Construction
The construction industry applies 6062 aluminum rods mainly in structural components and large frames demanding high strength, weather resistance, and long-term stability. Examples include reinforcing columns in high-rise curtain walls, large-span roof trusses, auxiliary load-bearing components for bridges and footbridges, and roof support systems in major public infrastructure like airports and train stations.
6062 Aluminium Bar for Equipment Manufacturing
In machinery and equipment manufacturing, producers apply 6062 aluminum bars to manufacture a wide range of products, including mechanical structural parts, tooling fixtures, sports equipment frames, motor housings, and radiator brackets. Its good machinability and surface treatment performance enable the products to meet the requirements of precision and strength, as well as be beautiful and durable, making them suitable for mass production.
Package
| Packing | 1,Generaally package:Anti-water paper+strapped with min three strapping strips. |
| 2,Standard exporting package:Anti-water paper and plastic+covered by iron shrrt+strapped with min three strapping strips. | |
| 3,Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strip+fixed on the iron or wooden pallets by strapping strips. | |
| Shipping | 1,Shipping by containers |
| 2,Shipping by bulk ship | |
| Custom | Customization is available upon request |
Why Choose Us?
Quality Assurance – All products comply with ASTM, ISO, ensuring high purity, uniformstructure, and stable performance.
Professional Supplier – Professional 6062 aluminium alloy bar rod supplier in China. We have an advanced factory to ensure quality and efficiency.
Competitive Price – The mature supply chain system ensure that our products are highly competitive in cost and price.
Superior Quality – Quality supervision on whole process of production from raw materials, manufacturing, packaging, warehousing till container loading.
On-Time Delivery – The mature logistics management system and company self owned freight forwarder ensure that our OTD rate reaches 100%.
