5A06 Aluminum Bar
5A06 Aluminum Bar is a non-heat-treatable, magnesium-containing (Al-Mg) aluminum alloyfrom the 5000 series—renowned globally as a premium “marine-grade” aluminumfor its exceptional corrosion resistance, excellent weldability, and balanced mechanical properties. With a magnesium content of 0.5–0.8% (and trace elements like Mn ≤ 0.5%, Cr ≤ 0.1%), 5A06 leverages solid-solution strengthening to deliver moderate strength (140–210 MPa tensile)while retaining outstanding ductility and formability—making it indispensable for applications exposed to humid, marine, or industrial environments.
Advantage |
Explanation |
| Excellent Corrosion Resistance | Due to the high magnesium content in 5A06 aluminum alloy, it exhibits outstanding corrosion resistance, particularly in marine environments and other corrosive media. The oxide film it forms effectively blocks the intrusion of corrosive substances, thereby extending the service life of components. This makes 5A06 aluminum alloy particularly suitable for marine aerospace and harsh environmental applications. |
| Good Weldability | 5A06 aluminum alloy has good welding performance and can be welded using various methods, including TIG welding and spot welding. After welding, the strength and toughness of the alloy do not significantly decrease, and the quality of the welded joints is relatively high. This feature makes it very practical in the manufacturing process of aerospace structural components, ensuring structural integrity and safety. |
| Machinability | 5A06 aluminum alloy is easy to machine and is suitable for various machining processes, such as milling and turning. Additionally, it performs well in cold working and can undergo various forming operations, such as stretching and bending, without significant brittleness. This provides a high degree of flexibility in the manufacturing process, meeting the needs for complex component machining. |
Our 5A06 aluminum rod bar meet or exceed international standards, including ASTM B221, EN 573-3 / EN 754-2, CCS/DNV/GL, AMS 4154, AMS 4027, AMS 4115. Our quality management system ensures compliance with these standards and provides reliable, certified materials for your critical applications.
HSTF Aluminum is a high-quality 5A06 aluminum rod bar supplier and manufacturer in China. We have large stock, factory direct price, quality assurance, fast delivery.
Specification
| Alloy | 5A06 Aluminum |
| Temper Options | F, H112, O, H111 |
| Outer Diameter (OD) | 3.0mm-600mm |
| Shapes and Sizes | 5A06 aluminum bars are usually provided in different diameters and lengths based on customer requirements, with common diameter ranges from 10mm to 300mm. |
| Standards | Complies with international aluminum alloy standards, such as ASTM, AMS, etc |
5A06 Aluminum Chemical Composition
| Element | Composition(%) |
| Al | Remainder |
| Si | ≤0.40 |
| Fe | ≤0.40 |
| Cu | ≤0.10 |
| Mn | 0.5-0.80 |
| Mg | 5.8-6.8 |
| Cr | / |
| Ni | / |
| Zn | ≤0.20 |
| Ti | 0.02-0.10 |
Application
5A06 aluminum bar rod is a versatile, corrosion-resistant, and weld-friendly alloy, making it a top choice for marine, structural, transportation, and industrial applicationswhere strength, durability, and ease of fabrication are essential.
1. Marine Industry– Used in boat hulls, ship structures, and offshore equipmentdue to its superior resistance to saltwater corrosion.
2. Transportation– Found in trucks, trailers, and railway componentswhere welding and corrosion resistance are important.
3. Structural & Construction– Used in bridges, frameworks, and supportswhere weldability and weather resistance matter.

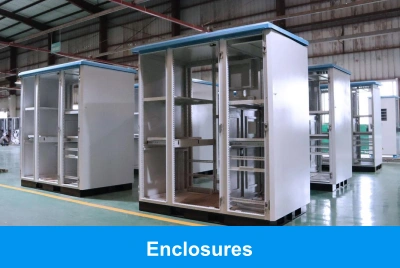

4. Electronics & Enclosures– Suitable for cabinets, housings, and protective casingsdue to its clean finish and corrosion resistance.
5. Pressure Vessels & Tanks– Often used in fuel tanks, chemical storage, and gas cylinderswhere welding and leak resistance are critical.

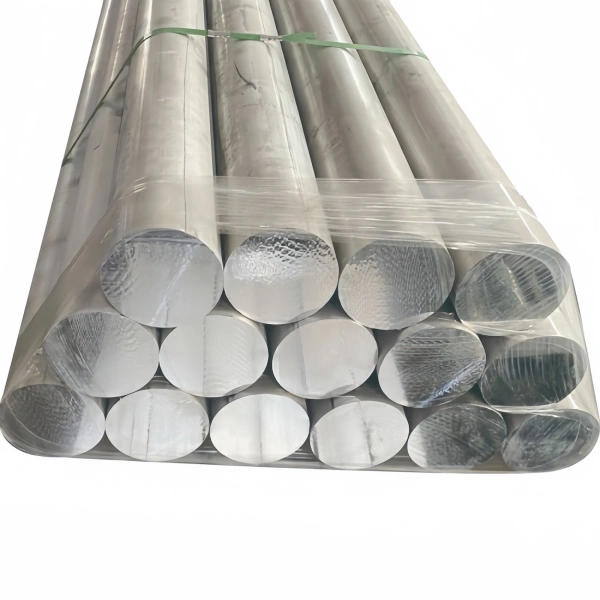

Package
| Packing | 1,Generaally package:Anti-water paper+strapped with min three strapping strips. |
| 2,Standard exporting package:Anti-water paper and plastic+covered by iron shrrt+strapped with min three strapping strips. | |
| 3,Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strip+fixed on the iron or wooden pallets by strapping strips. | |
| Shipping | 1,Shipping by containers |
| 2,Shipping by bulk ship | |
| Custom | Customization is available upon request |
Why Choose Us?
Quality Assurance – All products comply with ASTM, EN, ISO, RoHS and other international standards, ensuring high purity, uniformstructure, and stable performance.
Professional Supplier – Professional 5A06 aluminum bar supplier in China. We have an advanced factory to ensure quality and efficiency.
Competitive Price – The mature supply chain system, advanced equipment and technology ensure that our products are highly competitive in cost and price.
Superior Quality – Quality supervision on whole process of production from raw materials, manufacturing, packaging, warehousing till container loading.
On-Time Delivery – The mature logistics management system and company self owned freight forwarder ensure that our OTD rate reaches 100%.
