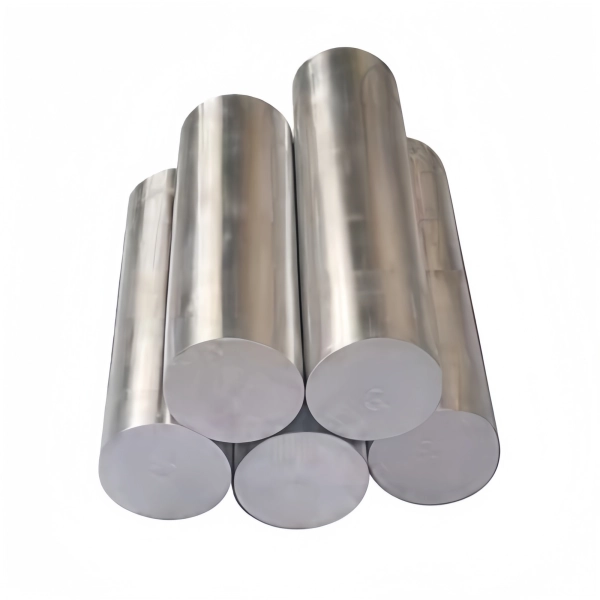

5A02 Aluminum Round Bar
5A02 Aluminum Round Bar is a non-heat-treatable aluminum-magnesium alloyfrom the 5000 series, known for its excellent corrosion resistance, good weldability, and moderate strength. With a magnesium content of 2.0–2.8%and small additions of silicon and iron, this alloy offers a balanced combination of mechanical properties and workability, making it suitable for various marine, architectural, and general industrial applications.
5A02 aluminum demonstrates superior resistance to seawater and atmospheric corrosion, outperforming many other aluminum alloys in harsh environments. Its non-heat-treatable naturemeans it achieves strength through cold working processes, available in tempers such as O (annealed), H12, H14, H16, and H18 to meet different application requirements.
-
- Excellent Corrosion Resistance– Performs well in marine and industrial environments.
- Good Weldability– Operators can easily weld it using common methods without special requirements.
- Lightweight– Low density provides weight savings in structural applications.
- Good Formability– Easy to process and form into various shapes.
- Recyclable– Environmentally friendly and sustainable material choice.
- Cost-Effective– Provides good performance at reasonable cost.
- Aesthetic Appeal– Accepts various surface treatments well.
Our 5A02 aluminum round bar meet or exceed international standards, including ASTM B221, ASTM B211, EN 755, SGS. Our quality management system ensures compliance with these standards and provides reliable, certified materials for your critical applications.
HSTF Aluminum is a high-quality 5A02 aluminum rod bar supplier and manufacturer in China. We have large stock, factory direct price, quality assurance, fast delivery.
Specification
| Alloy | 5A02 |
| Temper | O, H112 |
| Diameter | 8-320MM |
| Length | 1000mm–6000mm |
| Surface Finish | Mill finish, anodized, polished (custom options available) |
| Tensile Strength | O: 150–220 MPa; H18: 195–275 MPa |
| Yield Strength | O: 60–100 MPa; H18: 160–220 MPa |
| Density | 2.68 g/cm³ |
| Electrical Conductivity | 40–45% IACS |
| Thermal Conductivity | 130–140 W/(m·K) |
| Corrosion Resistance | Excellent (especially in marine environments) |
| Weldability | Excellent |
| Machinability | Good |
| Standard | ASTM B221, ASTM B211, EN 755, SGS |
5A02 Aluminum Chemical Composition
| Element | Composition(%) |
| Al | REM |
| Si | ≤0.40 |
| Fe | ≤0.40 |
| Cu | ≤0.10 |
| Mn | 0.15-0.40 |
| Mg | 2.0-2.8 |
| Ti | ≤0.15 |
| Zn | – |
| Note | Each:≤0.05;Total:≤0.15 |
Application
5A02 demonstrates better corrosion resistance than many common aluminum alloys while maintaining good mechanical properties. Its magnesium content provides solid strength without compromising formability. The material can be easily worked using standard metalworking equipment and accepts various surface treatments well.
This alloy represents a cost-effective solution for applications requiring durability in challenging environments, particularly where welding and corrosion resistance are important considerations. Its versatility makes it a popular choice across multiple engineering and manufacturing sectors.
- Marine components: Ship fittings, hull plates, and offshore structures.
- Transportation equipment: Vehicle bodies, railway carriage parts, and container components.
- Architectural uses: Building facades, decorative trims, and structural supports.
- Industrial equipment: Chemical tanks, pressure vessels, and processing machinery.
- Consumer goods: Appliance housings and electronic enclosures.

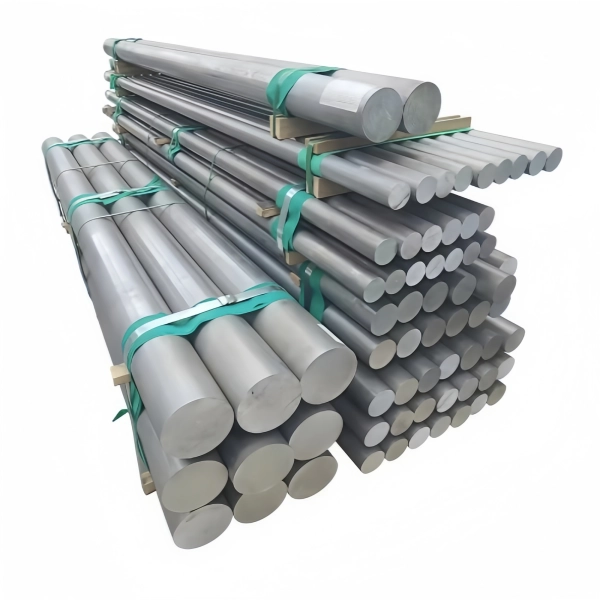

Package
| Packing | 1,Generaally package:Anti-water paper+strapped with min three strapping strips. |
| 2,Standard exporting package:Anti-water paper and plastic+covered by iron shrrt+strapped with min three strapping strips. | |
| 3,Excellent package:Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strip+fixed on the iron or wooden pallets by strapping strips. | |
| Shipping | 1,Shipping by containers |
| 2,Shipping by bulk ship | |
| Custom | Customization is available upon request |
