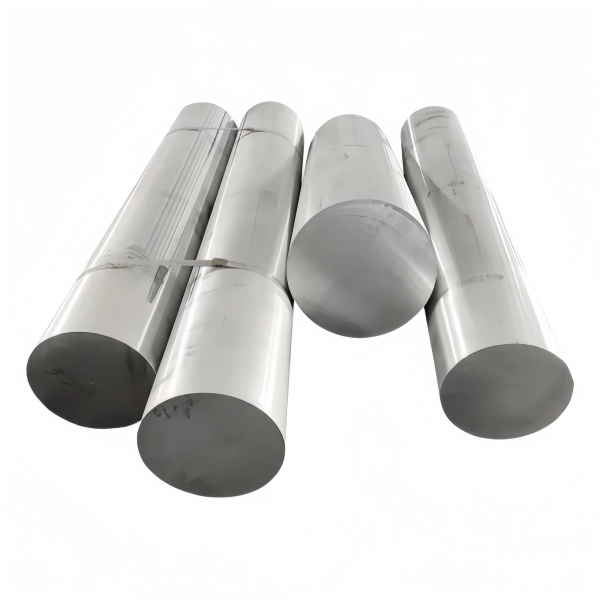

5005 Aluminum Rod Bar
5005 Aluminum Bar is a medium-strength, non-heat-treatable aluminum-magnesium alloyfrom the 5000 series, containing 0.5–1.1% magnesiumas the primary alloying element. This alloy is particularly valued for its excellent corrosion resistance, good formability, and attractive anodized finish, making it a popular choice for architectural, marine, and consumer product applications.
Compared to other 5000 series alloys, 5005 offers a balanced combination of moderate strength and excellent workability. It is commonly supplied in H32 or H34 temperswhich provide good strength while maintaining formability, or in O temperfor applications requiring maximum ductility. The alloy’s moderate magnesium contentgives it better strength than pure aluminum alloys while maintaining good welding characteristics and corrosion resistance.
5005 aluminum rod bar is particularly noted for its superior surface quality after anodizing, producing a bright, clear finish that is highly sought after in architectural and decorative applications. Its non-heat-treatable naturemakes it suitable for welding and fabrication processeswhere maintaining consistent material properties is important.
- Excellent Corrosion Resistance – Performs well in various environments, including marine applications.
- Good Anodizing Characteristics – Produces high-quality, attractive surface finishes.
- Moderate Strength – Suitable for structural applications requiring light to moderate loading.
- Good Formability – Can be easily bent and formed into complex shapes.
- Excellent Weldability – Can be welded using all conventional methods.
- Recyclable – Environmentally friendly material with good sustainability credentials.
- Cost-Effective – Provides good performance at reasonable cost.
HSTF Aluminum is a high-quality 5005 aluminum rod bar supplier and manufacturer in China. We have large stock, factory direct price, quality assurance, fast delivery.
Specification
| Alloy | 5005 (Al-Mg Series) |
| Temper | O, H12, H14, H16, H18, H32, H34 |
| Diameter Range | 3mm (0.12″) to 200mm (8″)– Custom sizes available |
| Length | 1–6 meters (3–20 feet)– Custom lengths available |
| Cross-Section Shapes | Round, Hexagonal, Square– Custom profiles available |
| Surface Finish | Mill Finish, Anodized, Polished, Brushed– Custom finishes available |
| Tensile Strength | O: 110–150 MPa (16–22 ksi) H34: 180–220 MPa (26–32 ksi) |
| Yield Strength | O: 40–60 MPa (6–9 ksi) H34: 140–170 MPa (20–25 ksi) |
| Elongation | H34: 4–8% |
| Density | 2.70 g/cm³ (0.0975 lb/in³) |
| Electrical Conductivity | 45–50% IACS |
| Thermal Conductivity | 195–205 W/m·K |
| Corrosion Resistance | Excellent – Especially in marine and industrial environments |
| Weldability | Excellent – All conventional welding methods |
| Formability | Good – Suitable for bending and forming operations |
| Machinability | Fair to Good |
| Anodizing Quality | Excellent – Produces bright, clear finishes |
| Typical Applications | Architectural trim, marine components, automotive trim, consumer goods |
Hot Selling Size of HSTF 5005 aluminum Bar
|
Product |
Diameter/Thickness (mm) |
Width (mm) |
Length (mm) |
Typical Applications |
| 5005 H112 Aluminum Round Bar |
6 |
– | 1000-6000 | Fasteners, hinge pins, decorative trim |
|
10 |
– |
1000-6000 |
General machining parts, shafts for light loads | |
|
12.7 (1/2″) |
– |
1000-6000 |
Plumbing fixtures, architectural components | |
| 20 | – |
1000-6000 |
Railings, structural supports in marine environments | |
|
25.4 (1″) |
– | 1000-6000 | Machine frames, rollers, material handling equipment | |
|
50 |
– |
1000-6000 |
Heavy-duty structural members, base plates | |
| 80 | – |
1000-6000 |
Construction of platforms, custom machinery | |
| 5005 O Aluminum Round Bar |
10 |
– |
1000-6000 |
Parts requiring extensive bending or forming |
| 5005 H32 Aluminum Round Bar |
20 |
– |
1000-6000 |
Automotive accessories, marine hardware |
| 5005 H34 Aluminum Round Bar |
30 |
– |
1000-6000 |
Applications needing higher strength than H32 |
| 5005 H112 Aluminum Square Bar |
10 |
10 |
1000-6000 |
Window frames, furniture construction, braces |
|
12 |
12 |
1000-6000 |
DIY projects, frames for enclosures | |
|
20 |
20 |
1000-6000 |
Architectural structures, support posts | |
|
25 |
25 |
1000-6000 |
Workbench legs, heavy-duty frames | |
|
50 |
50 |
1000-6000 |
Base for tables/machines, strong structural cores | |
| 5005 H112 Aluminum Flat Bar |
6.35 (1/4″) |
12.7 (1/2″) |
1000-6000 |
Trim, edging, stiffeners for panels |
|
10 |
30 |
1000-6000 |
Brackets, mounting plates, repair patches | |
|
12 |
50 |
1000-6000 |
Shelving supports, truck body panels | |
| 5005 H32 Aluminum Flat Bar |
3 |
25 |
1000-6000 |
Nameplates, decorative inlays, cladding |
| 5005 H34 Aluminum Flat Bar |
6 |
40 |
1000-6000 |
High-strength brackets, chassis components |
The above are just some of the specifications; we also offer other product sizes. If the dimensions listed do not meet your requirements, you can contact us directly for the latest inventory information or to request customization.
Contact Us NowApplication
Architectural and Decorative
One of the most common uses of 5005 bar stock is its ability to achieve high-quality, uniform anodizing.
- Trim and Molding:Used for decorative strips on buildings, vehicles, and furniture.
- Door and Window Frames:Extruded bars are used to create sleek, modern frames that are lightweight and rust-proof.
- Architectural Grilles and Screens:Laser-cut or machined into intricate patterns for both interior and exterior design elements.
Marine and Coastal Applications
5005’s excellent resistance to saltwater corrosion makes it a natural fit for marine environments.
- Boat Trim and Railings:Used for non-structural components like handrails, cleats, and trim pieces where a good finish is required.
- Hardware and Fittings:Ideal for cleats, chocks, and other fittings that benefit from corrosion resistance and a polished look.
- Ladder Rungs:Lightweight and corrosion-resistant bars are used for swim ladders and platform steps.
General Manufacturing and Fabrication
In the workshop, 5005 bar is a versatile material for a wide array of parts.
- Jigs and Fixtures:Machined into custom tools and holding fixtures for manufacturing processes. Its non-magnetic property is beneficial in certain electronic assembly applications.
- Consumer Durables:Used in the fabrication of appliances, furniture components, and recreational equipment where a good surface finish is important.
- Piping and Tubing Supports:Used for clamps and brackets that hold pipes, especially in corrosive environments.

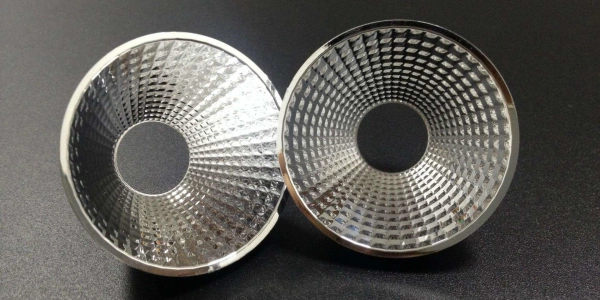

Electrical and Lighting Industries
While not the best conductor, its balance of conductivity, formability, and finish is valuable.
- Heat Sinks:Extruded bars are often used for heat sinks in LED lighting and electronics, as they dissipate heat effectively and can be anodized black to improve radiant heat transfer.
- Lighting Reflectors and Trunks:The highly reflective anodized surface is perfect for light fixtures and reflectors.
- Conductor Bars:Used in some low-stress electrical bus bar applications.
Package
- Inner protection: We wrap each aluminum rod in PE film to resist moisture and scratches.
- Bundle securing: Aluminum rods are bundled and reinforced with steel or PET straps, with protective padding toprevent loosening and abrasion.
- Outer packaging: Bulk orders are packed in sturdy wooden crates or pallets, with optional export-gradefumigation and moisture-proof lining for compression and shock resistance.
Why Choose Us?
Quality Assurance – All products comply with ASTM, ISO, ensuring high purity, uniformstructure, and stable performance.
Professional Supplier – Professional 5005 aluminum rod bar supplier in China. We have an advanced factory to ensure quality and efficiency.
Competitive Price – The mature supply chain system ensure that our products are highly competitive in cost and price.
Superior Quality – Quality supervision on whole process of production from raw materials, manufacturing, packaging, warehousing till container loading.
On-Time Delivery – The mature logistics management system and company self owned freight forwarder ensure that our OTD rate reaches 100%.
