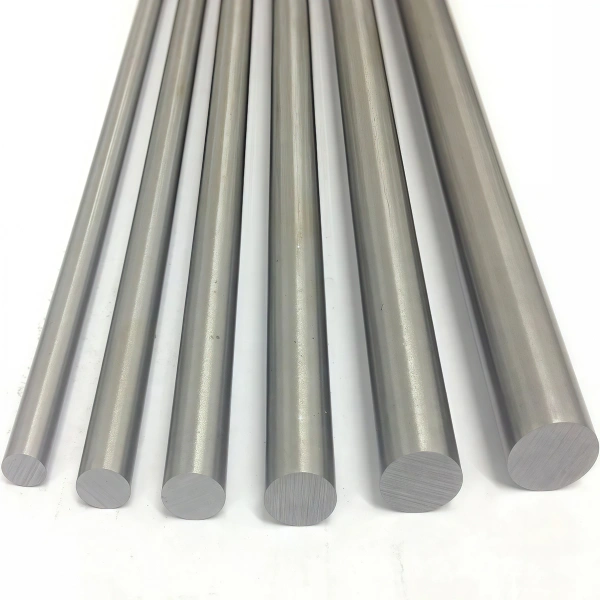

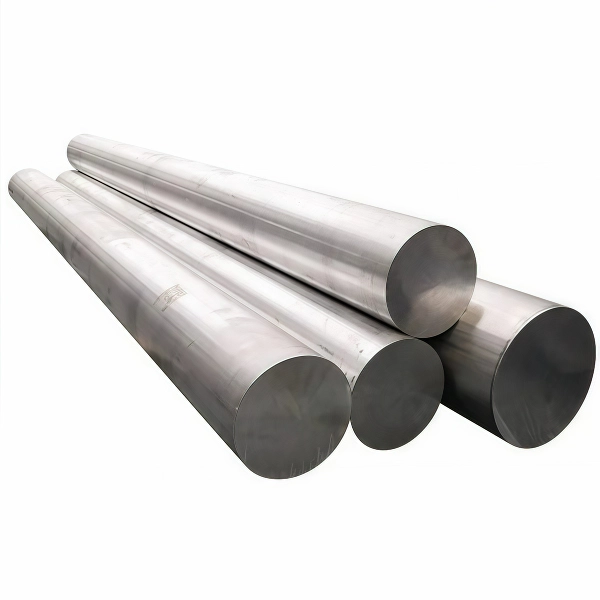

1100 Aluminum Rod
1100 aluminum rod is a commercially pure aluminum product with exceptional corrosion resistance, excellent workability, and high thermal/electrical conductivity. As one of the softest and most ductile aluminum alloys (nearly 99% pure aluminum), 1100 aluminum rod is part of the 1000 series (Aluminum-Minimum 99.00% pure), making it the ideal choice for applications where corrosion resistance, formability, and conductivity are more critical than high strength.
-
- Outstanding corrosion resistance, especially in marine and chemical environments.
- Excellent formability, allowing for easy bending, drawing, and machining.
- High thermal and electrical conductivity, making it suitable for heat transfer and electrical applications.
- Non-toxic and odorless, making it perfect for food and pharmaceutical contact.
- Easily welded and brazed using standard methods.
Our 1100 aluminum bar rod meets international standards such as ASTM B211/ASTM B221 and EN 754-2. We also have ISO 9001 and RoHS certifications, ensuring its suitability for industrial applications.

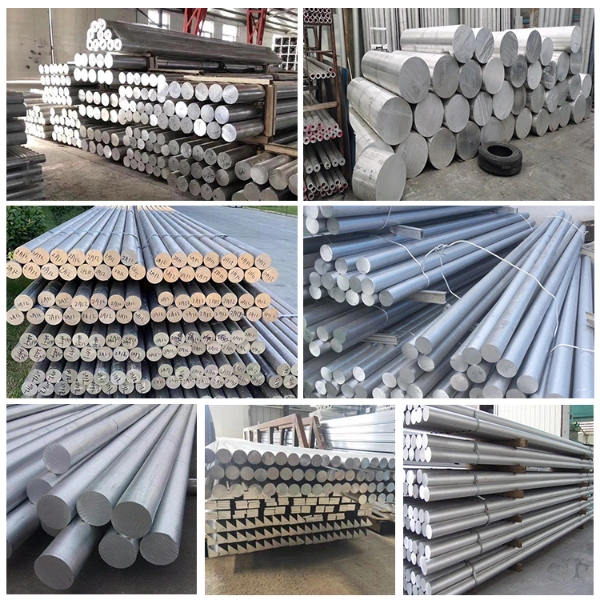

HSTF Aluminum is a high-quality aluminum bar rod supplier and manufacturer in China. We have large stock, factory direct price, quality assurance, fast delivery.
Specification
| Product Name | 1100 Aluminum Rod |
| Stock Diameter | 5mm-32mm (Custom sizes available) |
| Temper | F/O/H/H14 |
| Tolerance | Based on ASTM B211, B221, or customer specifications |
| Supply Forms | Spool, coil, straight rod |
| Production Methods | Hot rolling, extrusion, cold drawing |
1100 Aluminum Rod Chemical Composition (EN 573-3)
| Chemical Element | % Present |
| Si + Fe | 0.95 max |
| Cu | 0.05 – 0.20 |
| Mn | 0.05 max |
| Zn | 0.10 max |
| Other (Each) | 0.05 max |
| Others (Total) | 0.15 max |
| Aluminium (Al) | 99 % |
1100 Aluminum Rod Physical Properties
| Performance | O | H14 | H112 |
| Density | 0.1 lb/in3 | 0.1 lb/in3 | 0.1 lb/in3 |
| Ultimate Tensile Strength | 13 ksi | 16-21 ksi | min. 12 ksi |
| Yield Tensile Strength | 5 ksi | 17 ksi | 5.2 ksi |
| Fatigue Strength | 5 ksi | 7 ksi | 4.6 ksi |
| Shear Strength | 9 ksi | 11 ksi | 7.8 ksi |
| Shear Modulus | 3,770 ksi | 3,770 ksi | 3,770 ksi |
| Hardness Rockwell | Brinell | N/A | 23 | N/A | 32 | N/A | 23 |
| Elongation at Break Percentage | 32% | 1-10% | min. 14% |
| Modulus of Elasticity | 10,000 ksi | 10,000 ksi | 10,000 ksi |
| Poisson’s Ratio | 0.33 | 0.33 | 0.33 |
| Machinability Percentage | 10% | 30% | N/A |
| Melting Point | 1,190-1,215 °F | 1,190-1,215 °F | 1,190-1,210 °F |
| Specific Heat | 2.2 x 10^-1 BTU/lb-°F | 2.2 x 10^-1 BTU/lb-°F | 2.2 x 10^-1 BTU/lb-°F |
| Thermal Conductivity | 1,560 BTU-in/hr-ft^2-°F | 1,560 BTU-in/hr-ft^2-°F | 1,560 BTU-in/hr-ft^2-°F |
| Electrical Conductivity | 59% IACS | 59% IACS | 59% IACS |
1100 Aluminum Rod Type

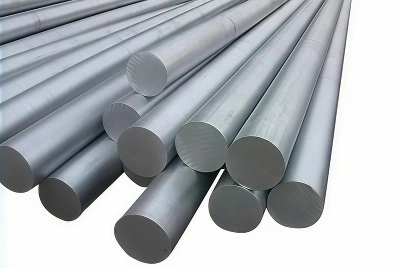

Hot Rolled 1100 Aluminum Rod
Oue hot-rolled aluminum rod has no joints in the middle and no coarse grain rings inside. It offerslow cost, making it ideal for continuous cold heading production.
Instant Quote

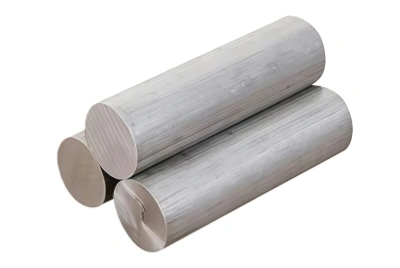

Extruded 1100 Aluminum Rod
Our extruded 1100 aluminum bar offers high precision, smooth surface, and supports various shapes likeround, hexagonal, and square bars.
Instant Quote

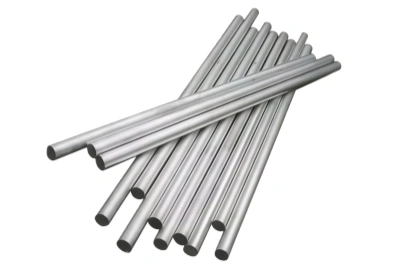

Cold Finished 1100 Aluminum Rod
High precision, smooth surface, and excellent machinability, ideal for precision parts.
Instant Quote

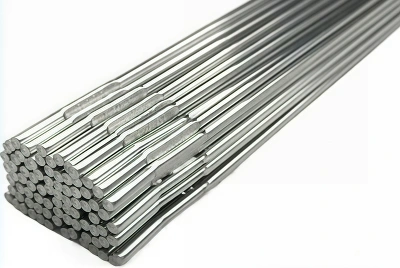

1100 Aluminum Tig Rod
Offers excellent weldability, high purity, and corrosion resistance, ensuring strong and clean welds foraluminum fabrication.
Instant Quote

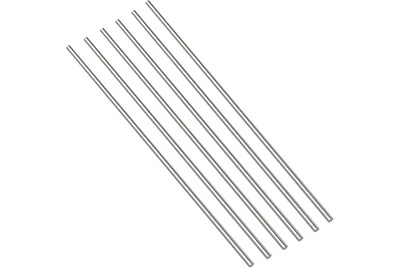

1100 Conductive Aluminum Rod
Provides high conductivity, low resistance, and corrosion resistance, ideal for bus bars, groundingrods, and electrical components.
Instant QuoteApplication
- Busbars: utilizes the high electrical conductivity of 1100 aluminum (≥59% IACS) for power transmissioncomponents and connectors.
- Electronic heat sinks: processed into fins or rod bases for LED lights, power modules, and other heatdissipation applications.

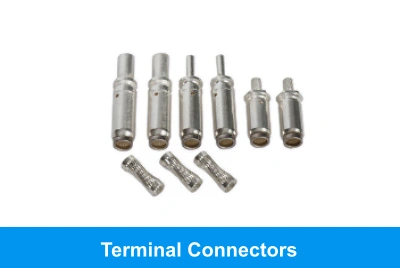

- Terminal connectors: precision-machined into small conductive terminals, offering a cost-effective andlightweight alternative to copper.

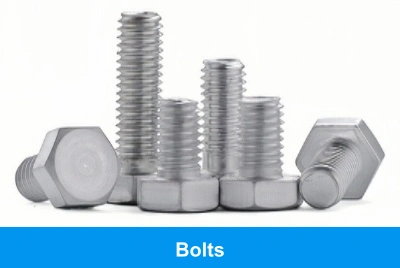

- Rivets and bolts: excellent ductility and cold heading performance make it ideal for standard fastenerproduction.
- Non-load-bearing automotive parts: applied in interior trim, wiring harness brackets, and other components toreduce vehicle weight.
- Architectural decoration: used for window and door trim, providing lightweight and weather-resistant properties.
Packaging
- Inner protection: Each aluminum rod is wrapped in PE film, with optional paper, cardboard, or foam layers formoisture and scratch resistance.
- Bundle securing: Aluminum rods are bundled and reinforced with steel or PET straps, with protective padding toprevent loosening and abrasion.
- Outer packaging: Bulk orders are packed in sturdy wooden crates or pallets, with optional export-gradefumigation and moisture-proof lining for compression and shock resistance.
